UNOBAT 45
The solid floor boards are nailed to a resilient sub construction of one layer engineered battens featuring a unique arrangement of specially developed rubber strips pre mounted on the underside of the battens. Area-elastic according to EN 14904 class A4, ideal for all types of sport, multi-functional halls, and large arenas.
Uniform Shock Absorption & High Resilience
Engineered for sports halls and arenas of all sizes, UnoBAT 45 pairs 22 mm solid hardwood boards with shock-absorbing rubber strips for exceptional ball bounce and safety under EN 14904 class A4.
Why choose our UNOBAT 45?
Resilient Rubber Strips
Specially developed pre-mounted rubber strips deliver progressive cushioning and true bounce.
Dual Batten Spacing
Choice between 336 mm and 411 mm center-to-center spacing for tailored arena performance.
Solid Hardwood Parquet
22 mm solid timber boards with 8–10 bare-wood sanding cycles over decades of use.
EN 14904 Class A4
Highest European area-elastic performance standard for multi-sport halls and competition.
Fast Installation
Engineered battens with factory pre-installed rubber strips speed up on-site assembly.

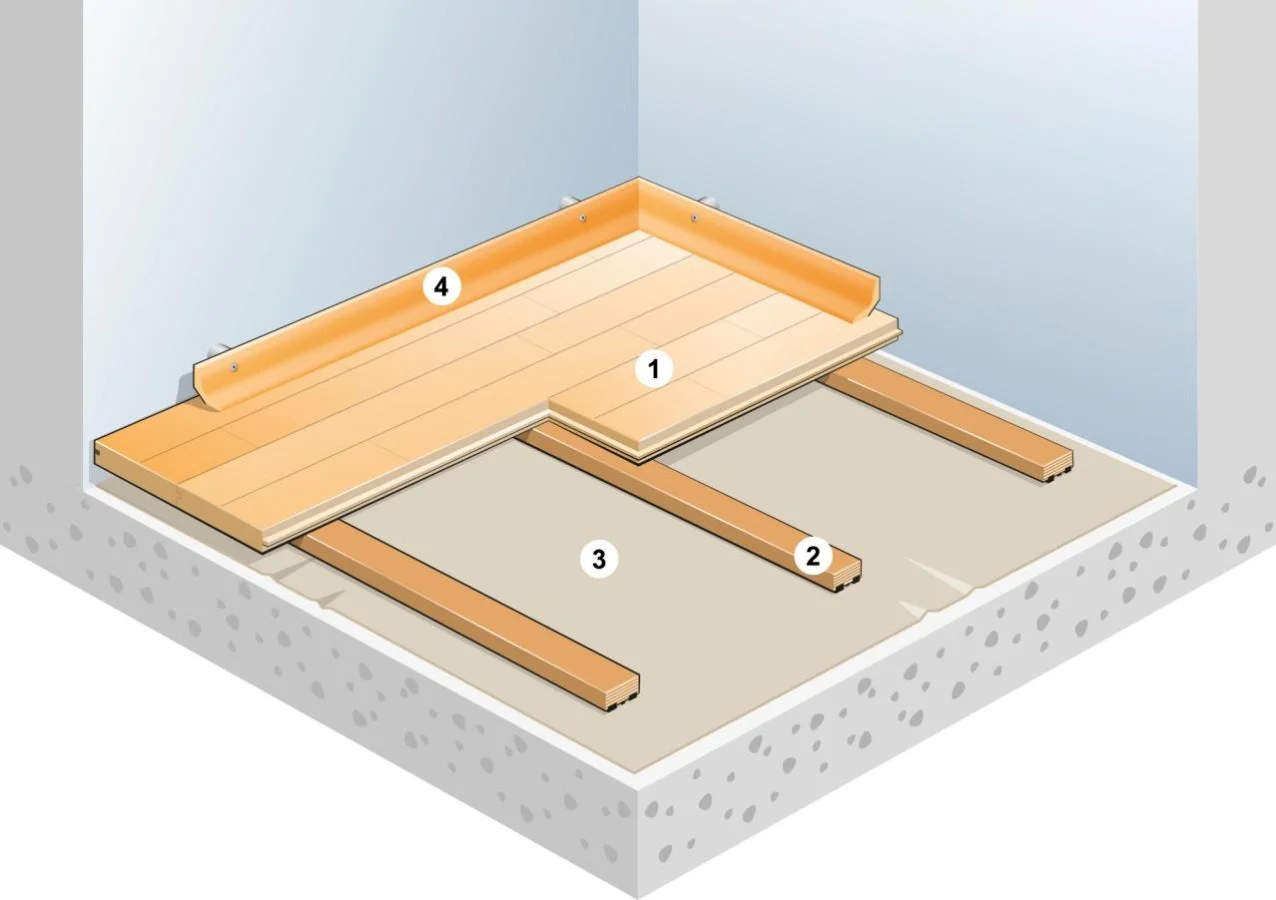

1.System Components
1. Floorboards: 22 x 129 x 3700 mm prefinished 2-strip solid hardwood floorboards.
2. UnoBAT 45 Batten: 38 x 65 x 2440–3600 mm engineered battens with pre-mounted rubber strips.
3. Moisture Barrier: Heavy-duty PE moisture barrier.
4. Perimeter Skirting: Combi sports skirting with air circulation channel.
2.Performance Facts
- Performance: Area-elastic according to EN 14904 class A4
- Use: All types of sport, multi-functional sports halls, small leisure centres to large arenas, refurbishment
- Floorboard Type: Prefinished 22 mm 2-strip solid hardwood parquet
- Subconstruction: Single layer engineered batten system
- Batten Centre (C/C): Choice between 336 mm and 411 mm
- Required Subfloor: Even
- Junckers 25 Years Fatigue Test: Yes, passed
- Sanding & Resealing: Yes, 8–10 times to bare wood
