UNOBAT 62+
The UnoBat 62+ System provides excellent performance and safety, along with the ability to accommodate all types of irregular subfloors. The 22 mm solid hardwood floor boards are fastened to a subfloor system consisting of single layer engineered battens with preattached shock absorbing rubber pads that snap-lock into either a J-lock cradle or an adjustable wedge for quick levelling without nails or tools.
Tool-Free Levelling for Uneven Subfloors
Designed for quick correction of uneven subfloors into flat, tournament-ready playing surfaces. Packing blocks fitting the adjustable J-lock Wedge allow infinite height adjustments.
Why choose our UNOBAT 62+?
J-Lock Wedge Levelling
Tool-free, nail-free levelling of uneven subfloors using snap-lock adjustable wedges.
Authentic Hardwood Maple
100% solid maple timber providing tournament-standard traction and ball response.
Resiliency & Performance
EN 14904 Class A4 certified area elasticity protecting player joints and ligaments.
Multi-Sport Flooring
Engineered for basketball, volleyball, badminton, gymnastics, and multi-purpose use.
International Approvals
Tested and certified by international federations for competitive tournament venues.

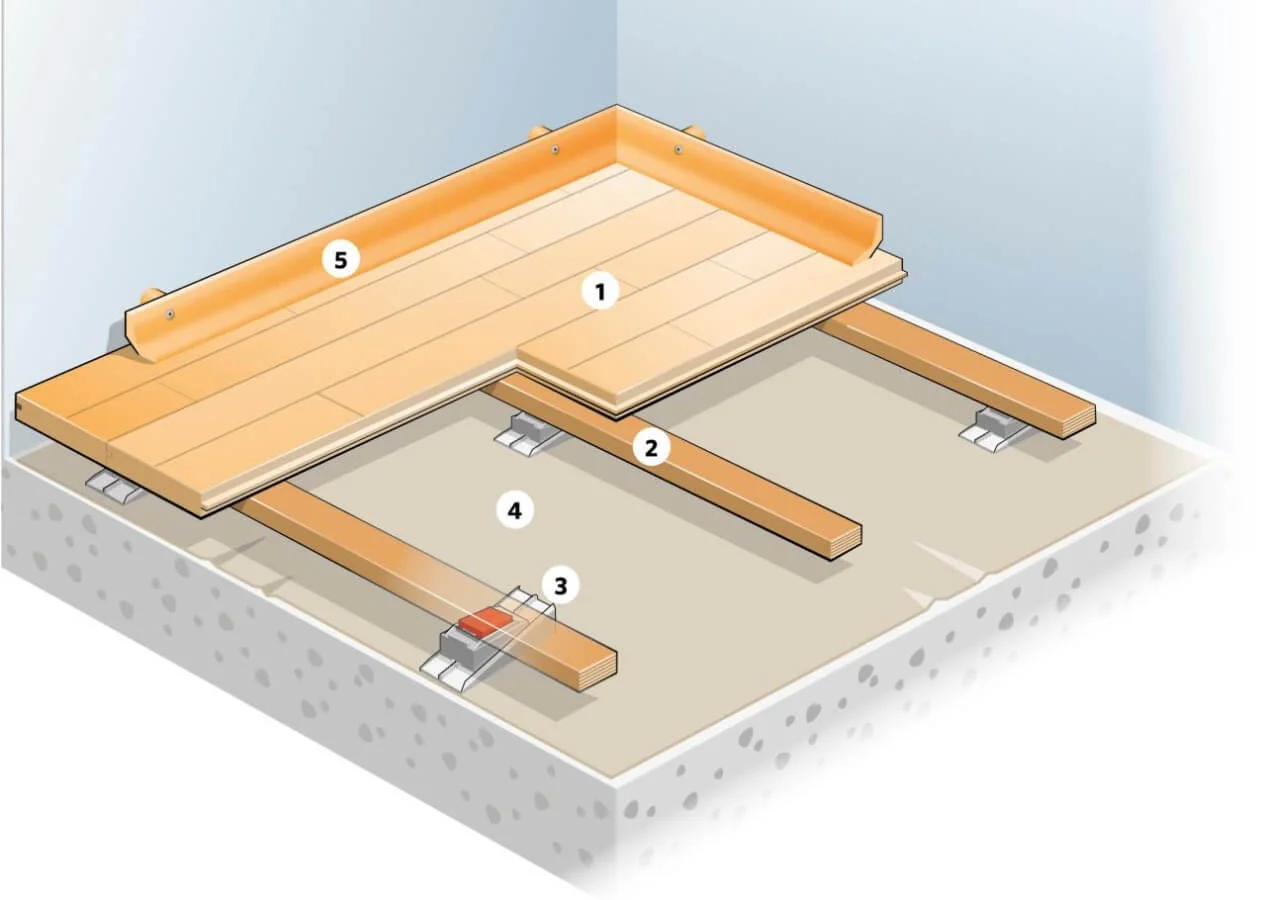

1.System Components
- 1. Floorboards: 22 x 129 x 1830 mm prefinished 2-strip solid hardwood floorboards.
- 2. UnoBAT 62+ Batten: 38 x 65 x 2440–3600 mm engineered battens with pre-attached shock pads.
- 3. Levelling System: J-Lock Wedge and snap-lock cradles with packing blocks for custom heights.
- 4. Moisture Barrier: Heavy-duty PE moisture barrier.
2.Performance Facts
- Performance: Area-elastic according to EN 14904 class A4
- Use: All types of sport, multi-functional sports halls, arenas, refurbishment, irregular subfloors
- Floorboard Type: Prefinished 22 mm 2-strip solid hardwood
- Subconstruction: Single layer batten system with adjustable J-Lock wedges
- Batten Centre (C/C): Choice between 336 mm and 411 mm
- Construction Height: 62 mm (extendable with packing blocks)
- Required Subfloor: Even or uneven / irregular
- Underfloor Heating: Yes, compatible
- Sanding & Resealing: Yes, 8–10 times to bare wood
