Basketball

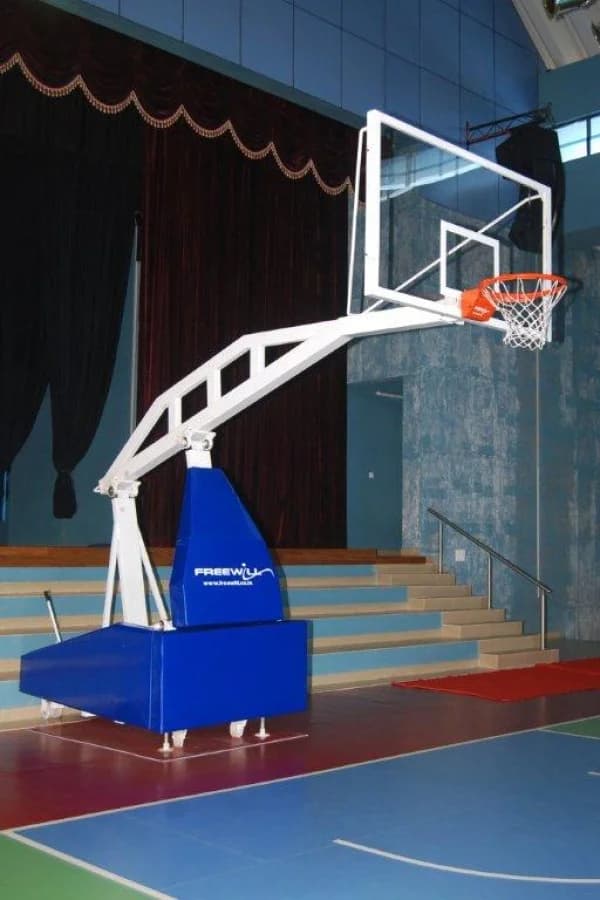

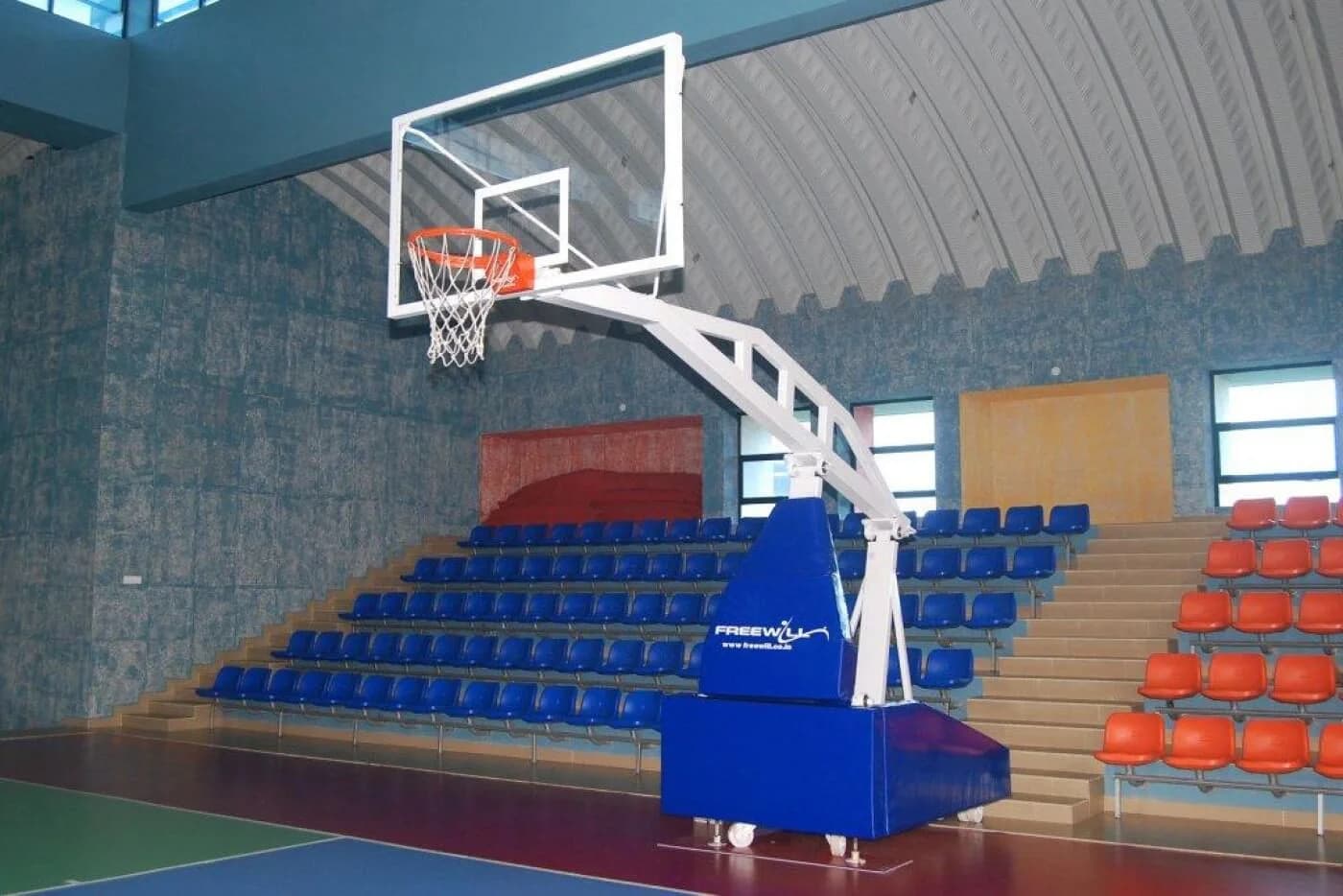

The base of the frame shall consist of structural steel tubing, comprising of 120 x 60 x 3 mm, 100 x 50 x 3 mm and 50 x 50 x 3 mm square tubing, and formed sheet metal parts welded together to form a rectangle. The base supports two structural steel columns consisting of 100 x 50 x 5 mm and 40 x 40 x 5 mm steel tubes welded together. The columns are supported on hinges with Ø 40 mm shaft at bearing ends on the base. On the columns is supported the overhang beam of 125 x 125 x 5 mm tube holding the backboard. The overhang beam shall have an extension of 3200 mm from the front base pad to the front of the backboard glass. The unit will come preassembled with 600 kg of ballast weight.
Folding
High power hydraulic cylinder with manual cranking, taking only minutes to raise and lower.
Why choose our Basketball?
3200 mm Overhang
Measured from the front base pad to the front of the backboard glass.
Hydraulic Folding
High power hydraulic cylinder with manual cranking, raised or lowered in minutes.
600 kg Ballast, Preassembled
With 2 heavy-duty swivel casters on 150 x 50 mm nylon wheels.
Dunking Ring
Three spring mechanism, powder coated as per international standard.
1.Frame & Base
Base of 120 x 60 x 3 mm, 100 x 50 x 3 mm and 50 x 50 x 3 mm structural steel tubing with formed sheet metal parts welded into a rectangle
Two columns of 100 x 50 x 5 mm and 40 x 40 x 5 mm steel tubes, on hinges with Ø 40 mm shaft at the bearing ends
Overhang beam of 125 x 125 x 5 mm tube holding the backboard, extending 3200 mm
Preassembled with 600 kg of ballast weight
2 heavy-duty swivel casters with 150 x 50 mm nylon wheel, 6 at the back and 4 at the front
2.Backboard & Ring
Steel powder coated frame with built-in brackets for mounting
Transparent acrylic board size 1800 x 1050 x 25 mm
Dunking ring with three spring mechanism, powder coated as per international standard
3.Padding
All base side padding shall be a minimum of 3” thick foam
Standard padding colour shall be blue
